YG Heat 2KZ
YG Heat 2KZ - Wiring
The YG Heat 2KZ Yellow Grid is connected to a fixed electrical outlet of the electric boiler.
The connection must be performed by a qualified electrician.
The device can connect to the Internet via Ethernet (RJ45) or Wi-Fi.
Setup can be performed using the Yellow Grid app or the Yellow Grid Cloud.
A temperature sensor is included in the package.
YG Heat 2KZ - Technical data
Product Description:

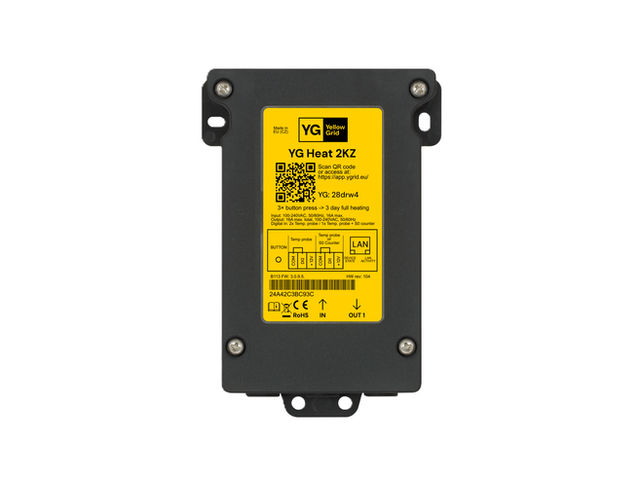

YG Heat 2KZ is a compact flat device designed for installation near an electric water heater. It can switch the power output ON/OFF and display measured values.
An external temperature sensor can be connected via the DI (Digital Input) interface.
The device can be controlled using the Yellow Grid web application.
ZCS (Zero Current Switching): Switching at the current zero-crossing point reduces relay wear and enables reliable switching of devices with high inrush current.
Power:
Terminal block (Ø 2.5 mm), 230 V
Output: On/Off (relay SPST-NO, IOC)
Max current: 16 A
Internal consumption: 1-2 W
Interface:
LAN 10/100 Mbps (RJ45)
Wi-Fi: 802.11 b/g/n; 2.4 GHz
1x button
1x DI (Digital Input)
Electrical measurement:
Energy (Wh), Power (W)
Dimensions and Weight:
Device: 102 × 32 × 149 mm, 220 g
Package: 125 × 73 × 204 mm , 430 g
YG Heat 2KZ is supplied without power cables.
Operating conditions:
Temperature: -20 °C to +55 °C
For indoor use only (IP30)
Standards:
EN 62368, EN 60950, EN61000, EN50581
Designed and made in the Czech Republic
